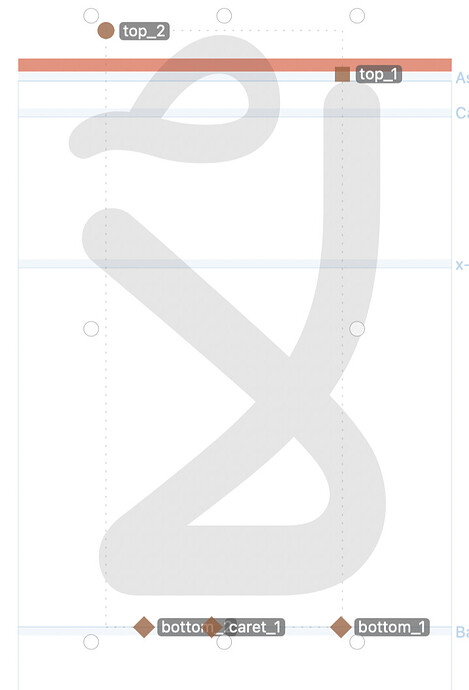

Hello, I am running into a strange issue. Trying to export a variable font, I get an incompatibility warning. Inspecting the glyphs in question, I see that the anchor setups are incompatible when I decompose the components:
However, my base components are perfectly compatible.
can you send me the file?
Sent, thank you.
The decomposition behaves slightly different when the make has a manually set anchor (with the anchor button in the info box). You can remove those manually set anchors.
And the “lam_alefWasla-ar” doesn’t need a “bottom” anchor.
and “behDotless_alefMaksura-ar.fina” misses a “bottom_1” anchor in the Extra Light master.
Thanks a lot for having a look so quickly, I really appreciate it. I will see that I fix it accordingly.
I’m very sorry, I don’t see what you mean. What anchor button in the info box do you mean?
My lam_alefWasla-ar is a composite, I don’t have a bottom anchor set anywhere.

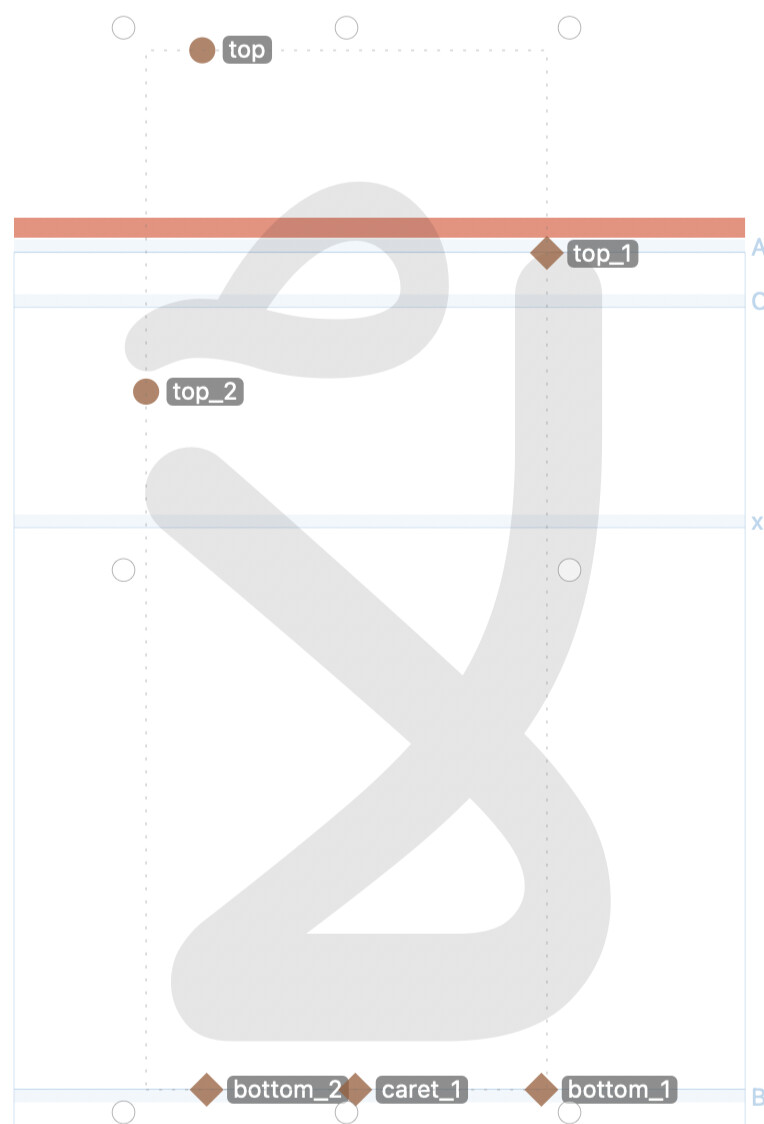

My behDotless_alefMaksura-ar.fina has all anchors:
Sorry, this is my first time working on an Arabic font, so I’m not familiar with the way all the things work.

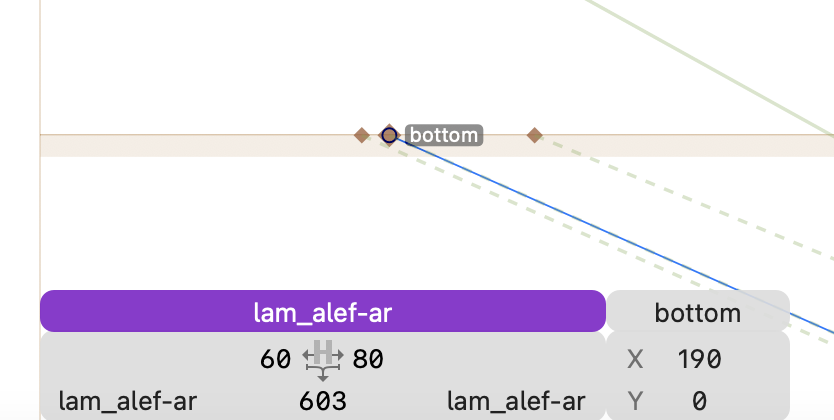

The one with the anchor symbol when you select a secondary component (one that is placed through anchor connection).
Thank you two very much! It works now.
