Interpolation preview problem


I’m working on a file with a design space with three axes: width, weight and optical size. The point is that I have a master for a thin condensed and, as soon as I generate an instance out of it, the preview shows it with a weird change in its paths (see screenshot). It might be the influence of the positions in each axis but I’m not sure if that’s the problem. As soon as I am changing the positions on the axis the master is disappearing in the preview.

Did someone experience this too?


PD: the leftmost drawing should be a well-drawn master.

The leftmost shape looks like it is extrapolated?.

Compare your Master weight to the corresponding Instance weight value. Looks like they’re off by a few units.

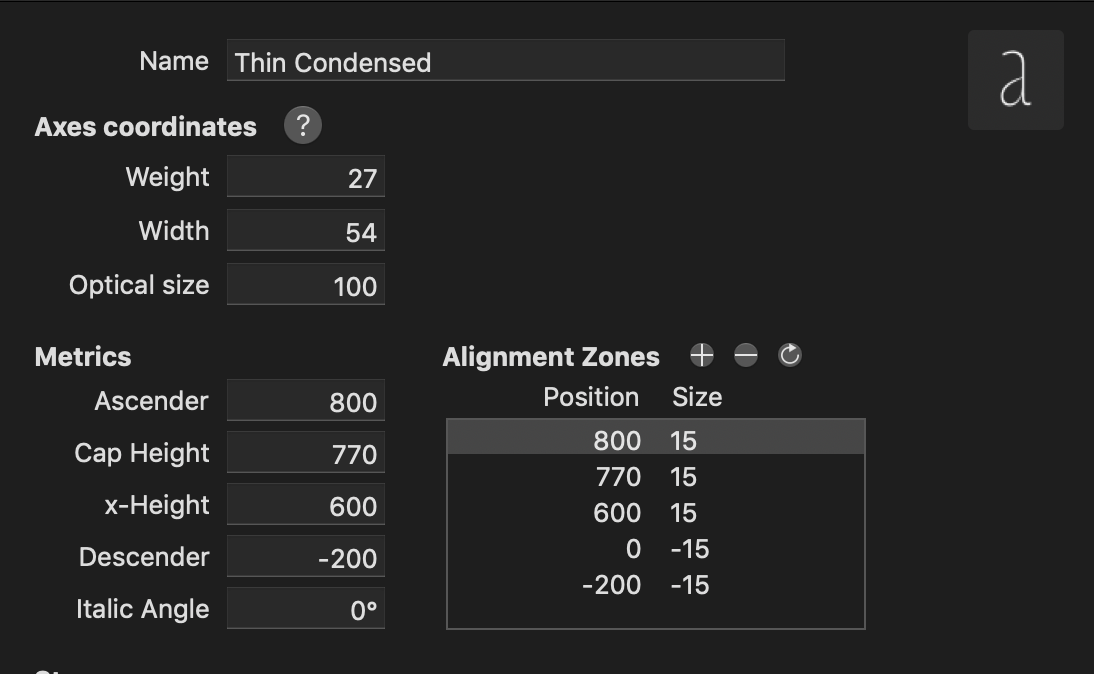

Actually, that’s what I thought right away when I saw this problem but I generated each instance out of each master so they are sharing the same values. Find here a screenshot:



hmm. I would need to see the file.

Would it be ok for you to send it, then? I’m sure it has to do with the influence of a position in an axis but I’m not sure how to solve this.

Please send the file.
