Hi everybody,

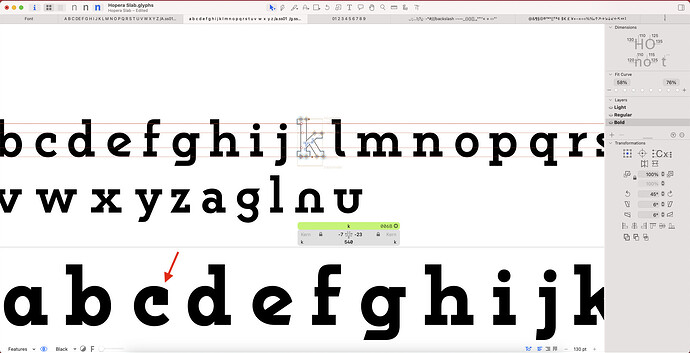

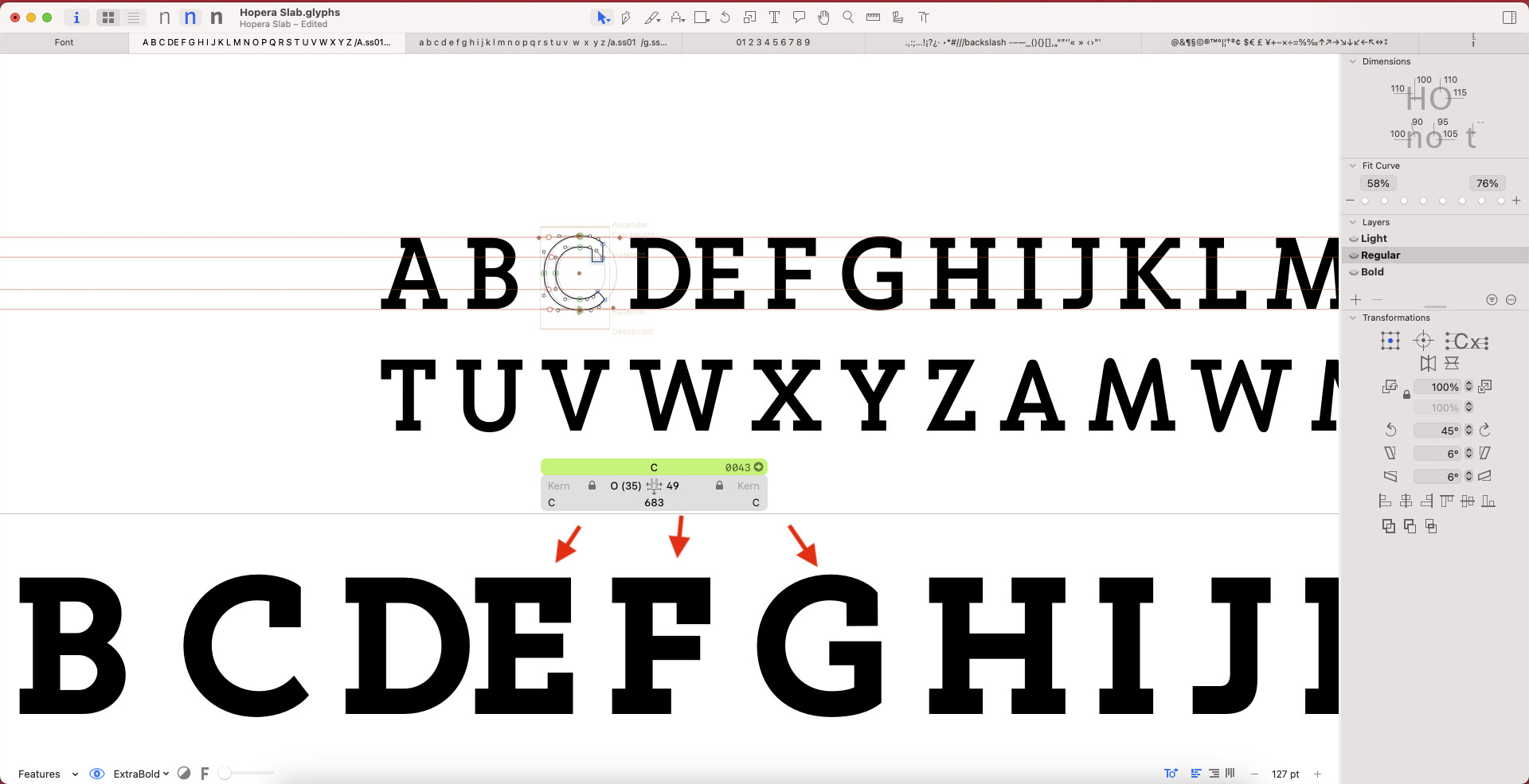

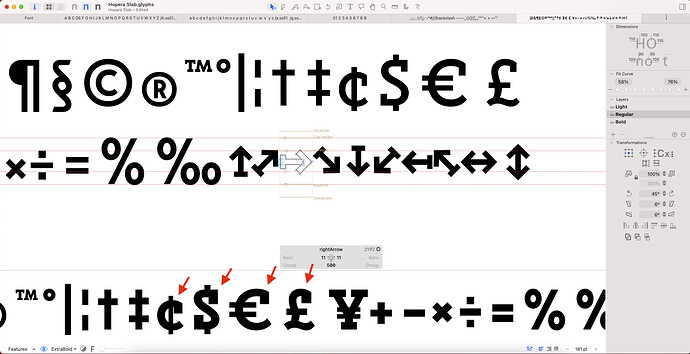

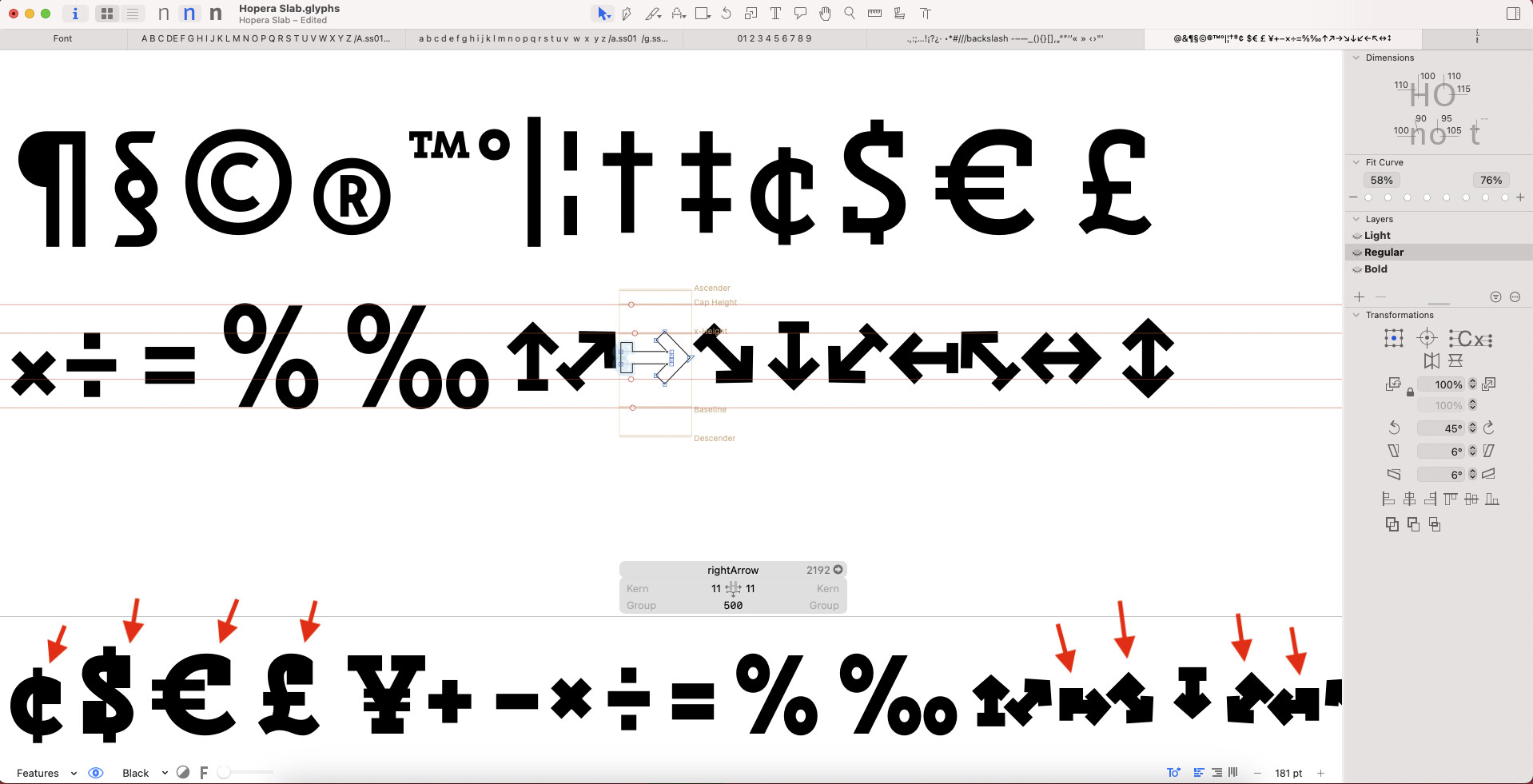

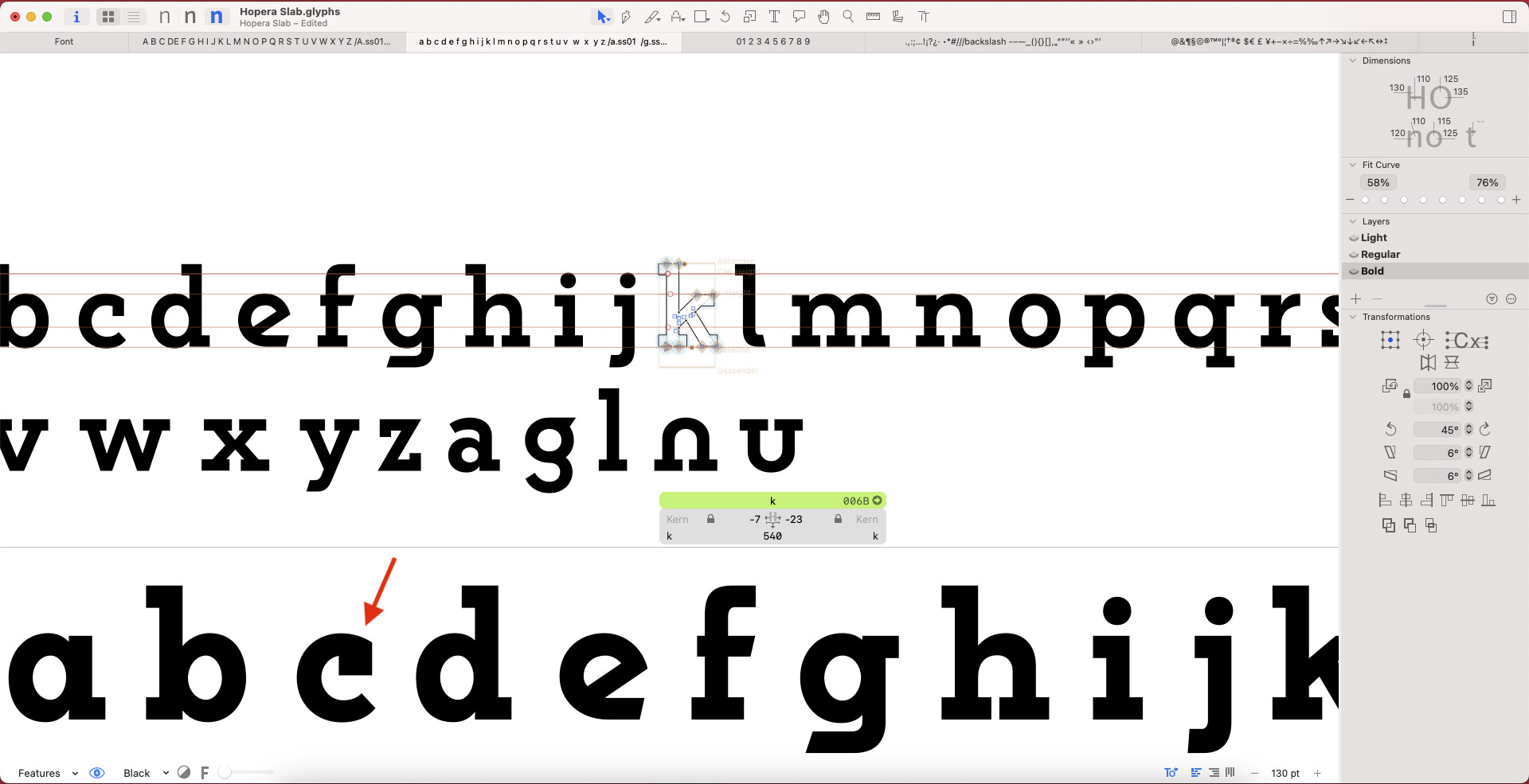

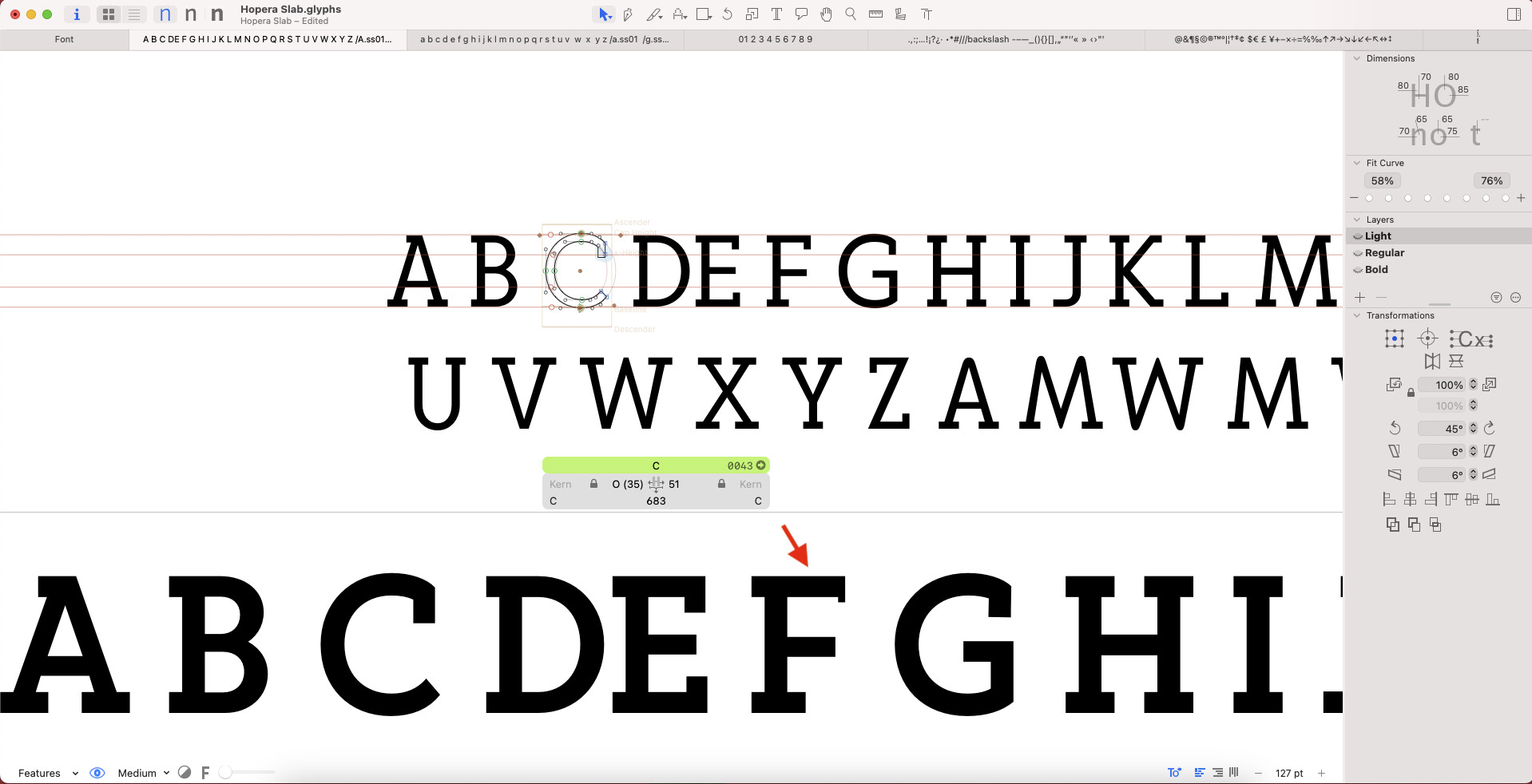

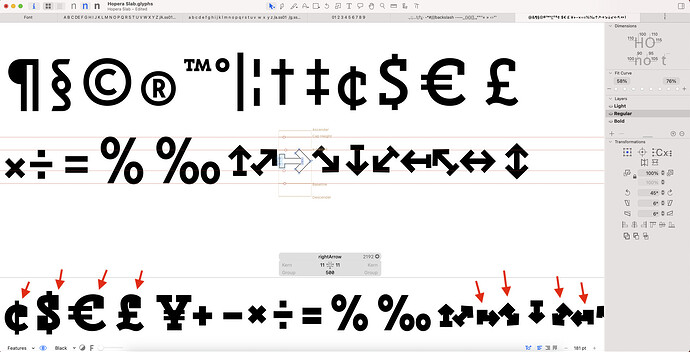

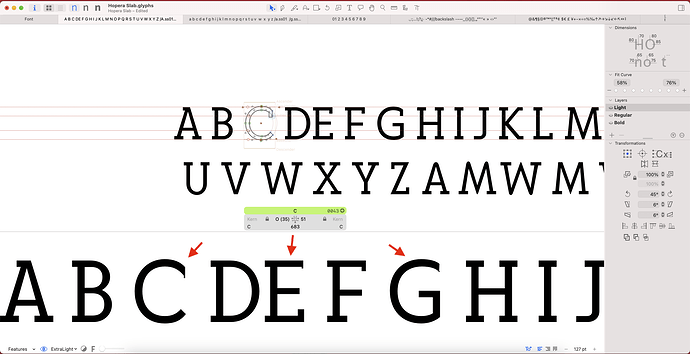

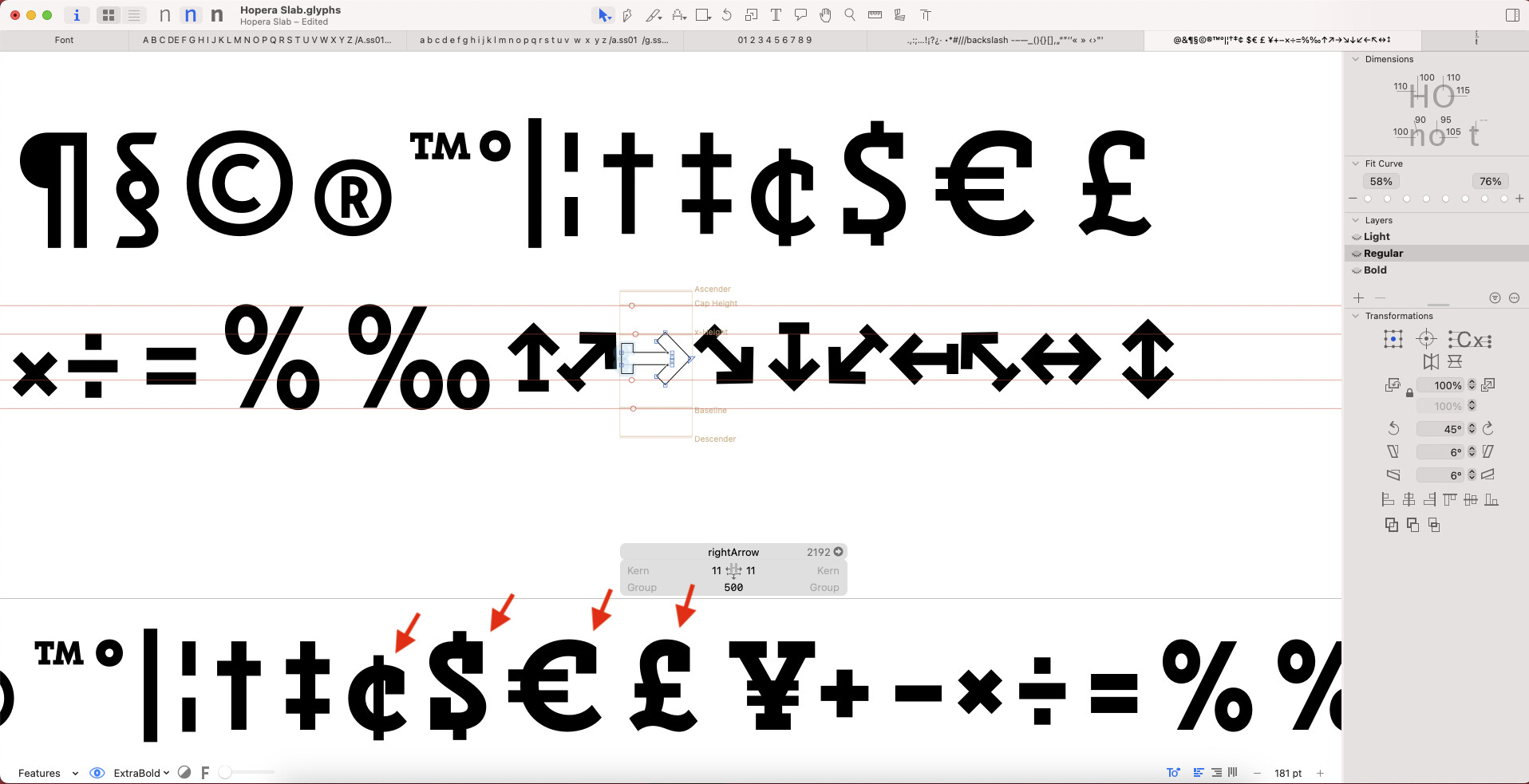

I have some issues with interpolating serifs on my instances. I attached some screenshots to get a clear situation. I didn’t put them all in, i.e. also letter S have same issue on serif.
How can I fix it?
Check that your corner components have the same transformation applied in all masters (flipping/rotating etc., in the grey info box when you select a corner component).
It would be also helpful if you upload screenshots of the corner component in all three masters — there might be some inconsistency in path direction, anchor positioning etc.

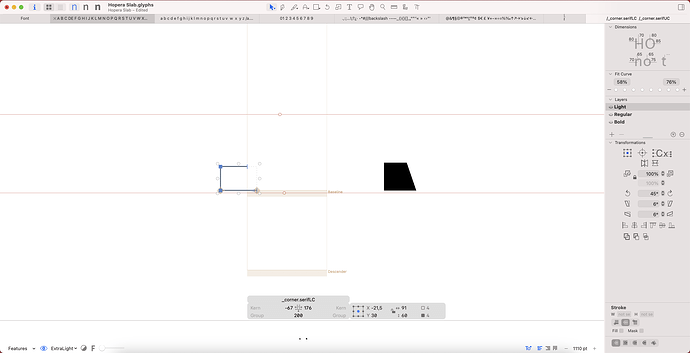

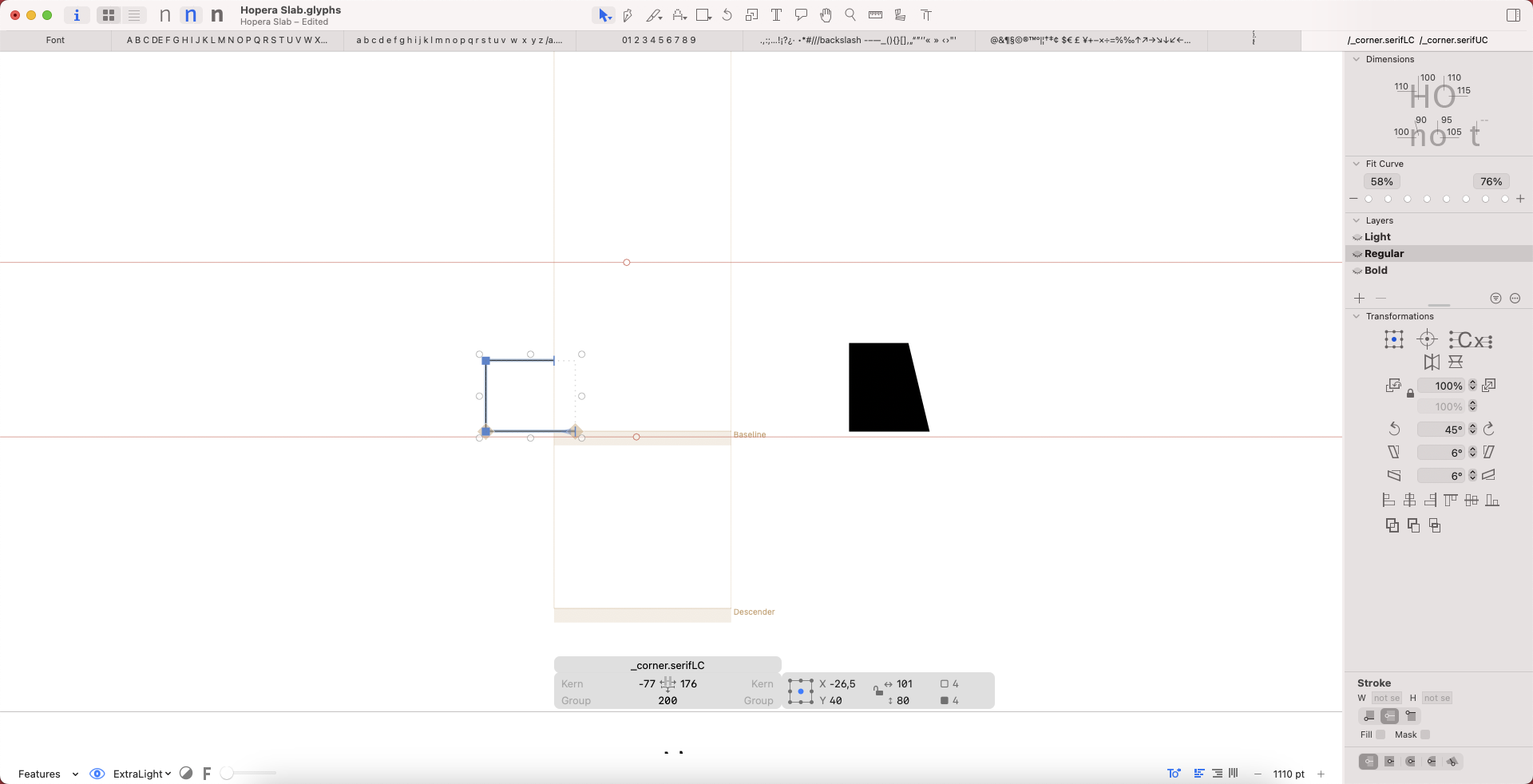

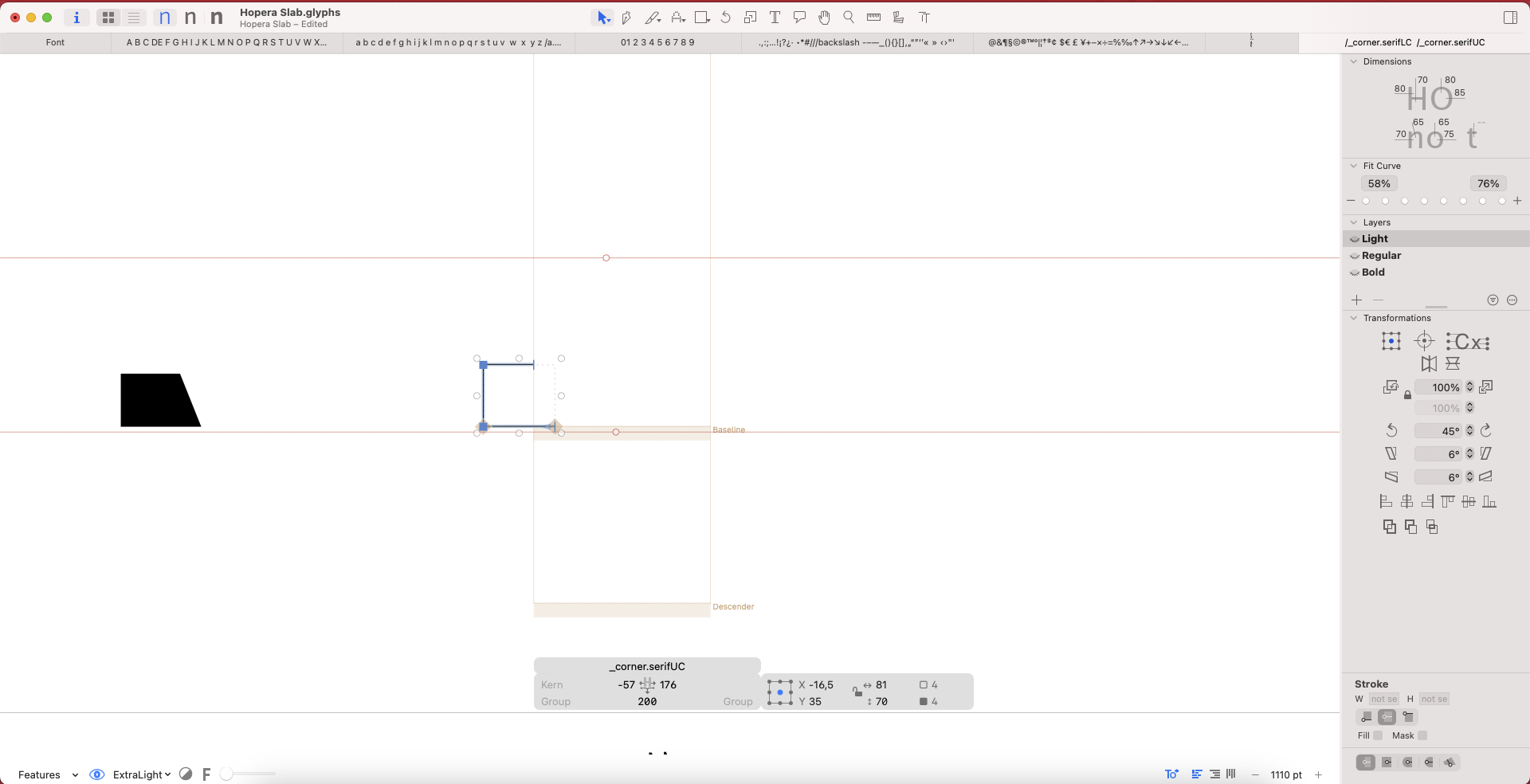

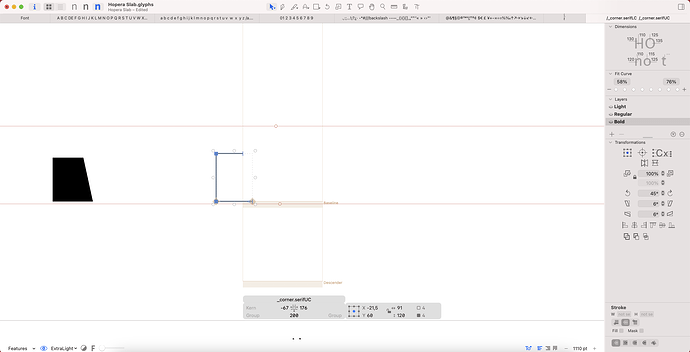

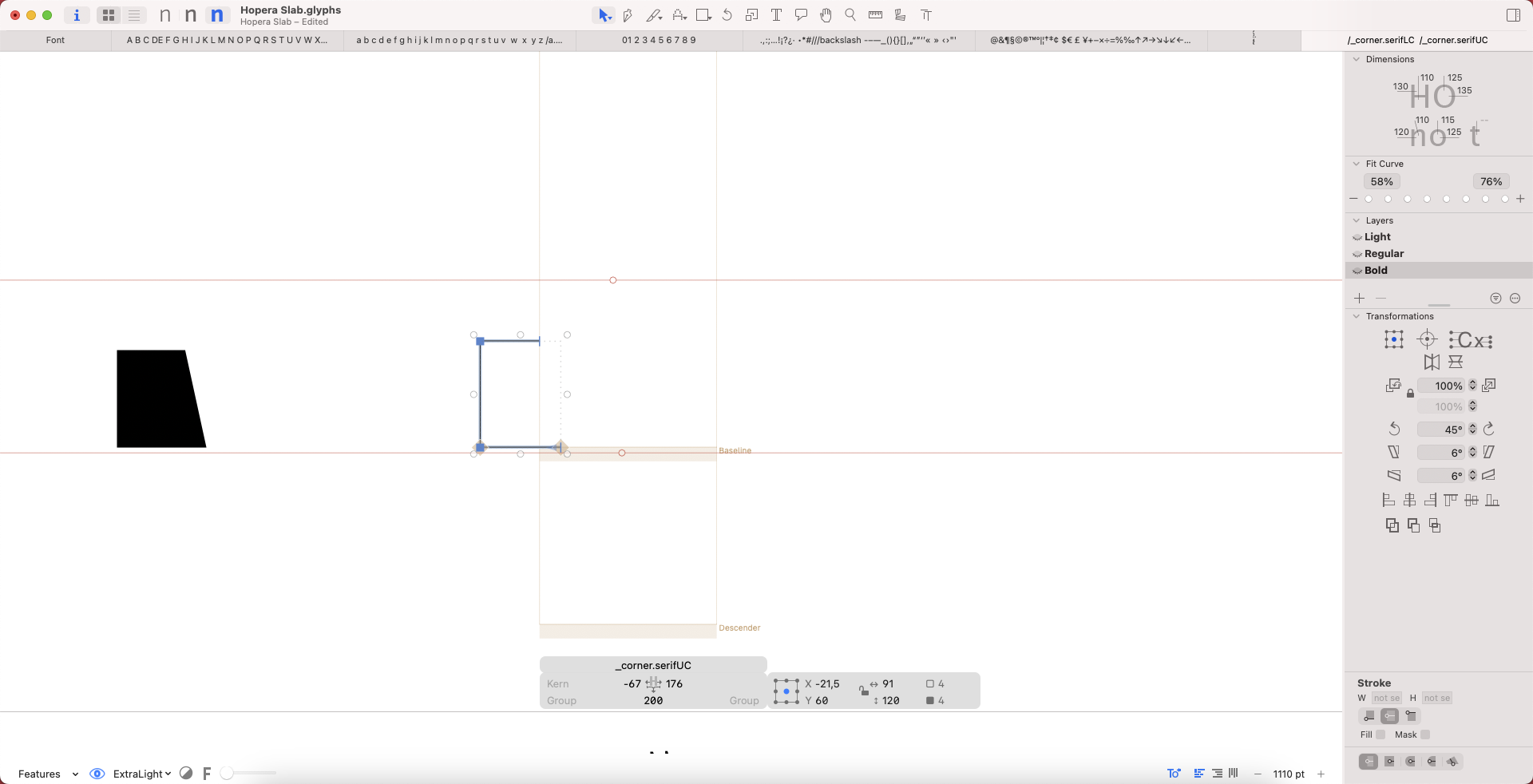

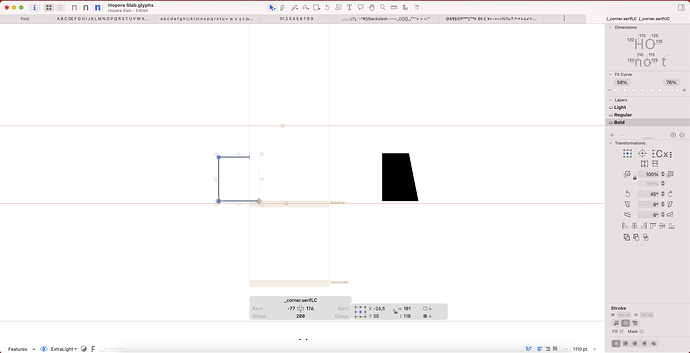

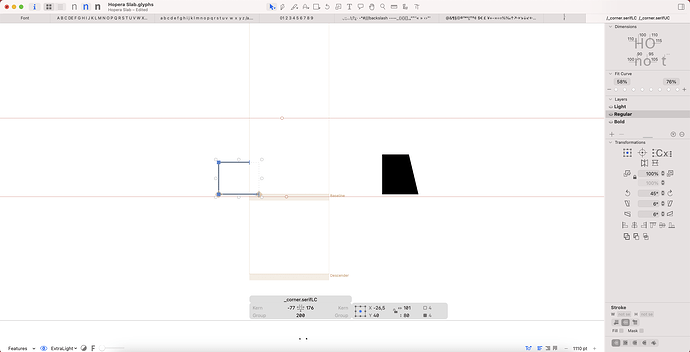

I have two corner components (UC and LC) for each masters, they differ only in height and length for obvious reasons. Below you can see screenshots of them for each masters
In the problematic glyphs, can you show the transformation/alignment settings of the corner components?
Corners themself look ok to me, so definitely check (in)consistency of their transformations in respective glyphs, as Sebastian suggests.
I managed to fixed it. I deleted and replaced corner components through the masters many times, without touching the original components, and it settled down.
Thanks for the help by the way!
One issue with the corners. The paths are kind of clock wise (starting at the bottom right and then going clockwise to the top left. Paths generally should be counter clock wise. If you fix this now, you need to flip all occurrence. That might be to disturbing right now, so keep it in mind for next time.
And to avoid the interpolation problems, always use either x or y scale to flip them (is the flip button in the transform panel).
