Hi all
Operation before offset printing: This photo is taken from a plate in lithography. The dots of some letters are moved. how can I fix this?
Are those dots composites of composites? If so, maybe the Unnest Components filter used as a custom parameter at export can fix the problem.
1 Like
No Jens. The strange thing is that in some word dot is Ok and in other word they are shifted. It is not always the same.
@GeorgSeifert @mekkablue @FlorianPircher
Any help guys?
Are you sure that these are not nested components? Can you show a screenshot of your setup in Glyphs?
Is this nested? 2 component in one glyph

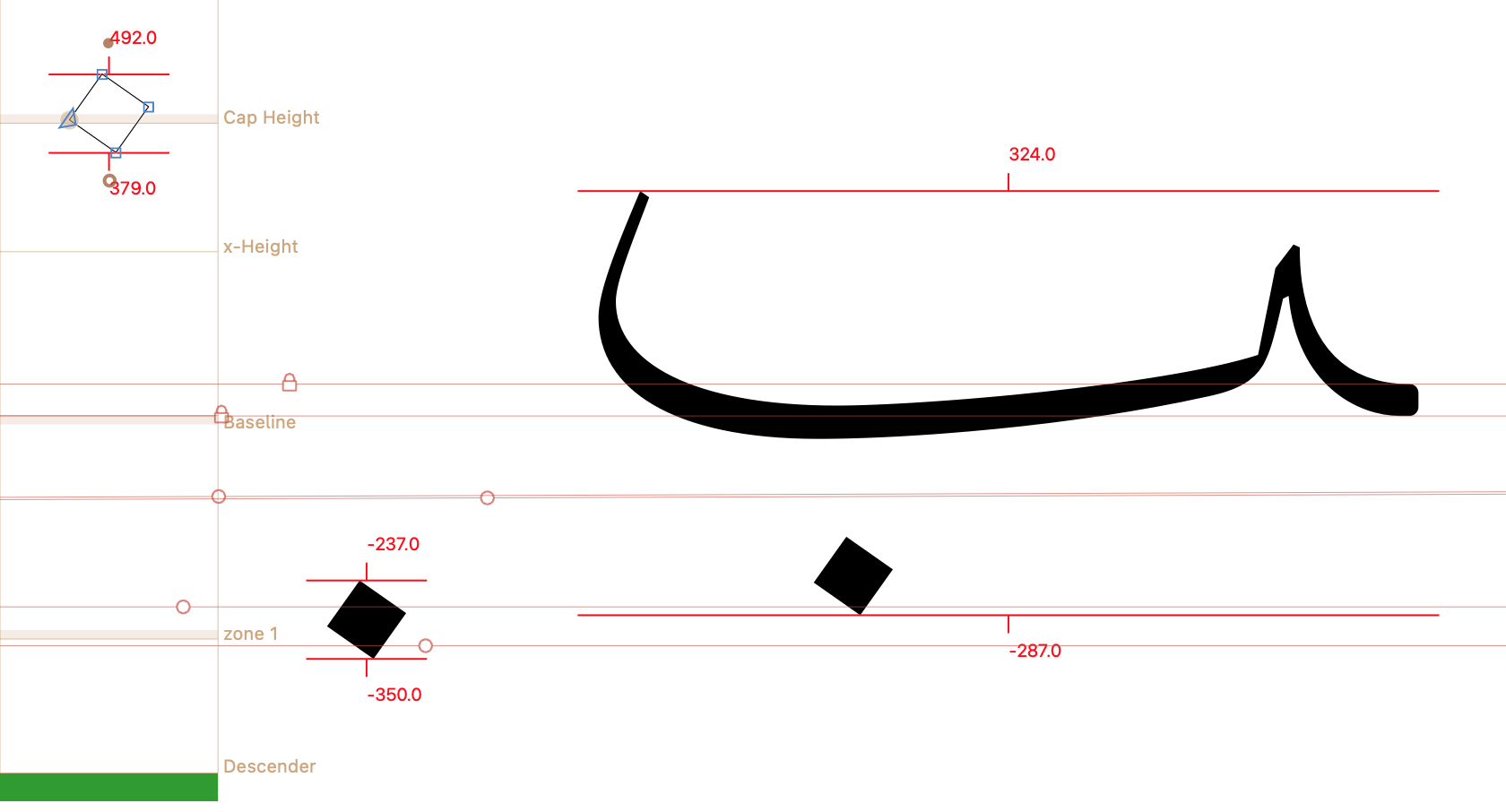

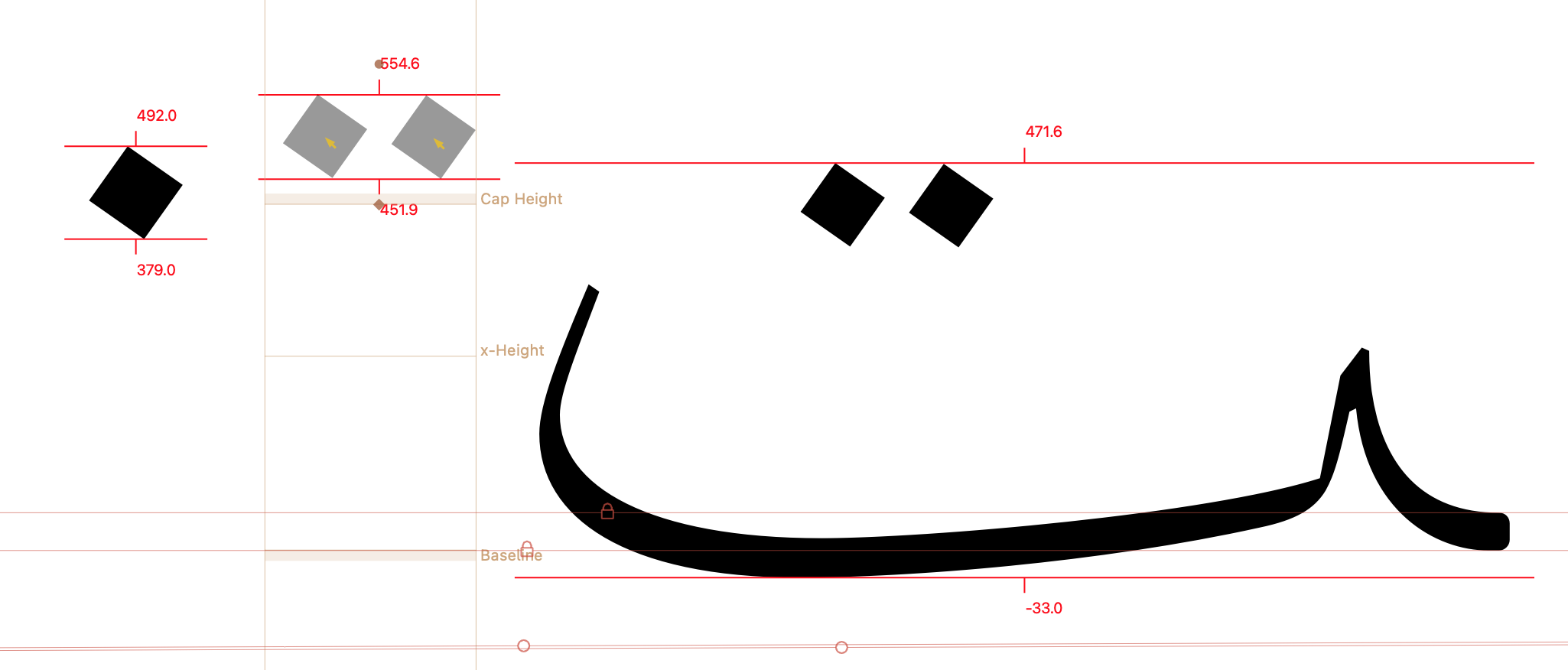

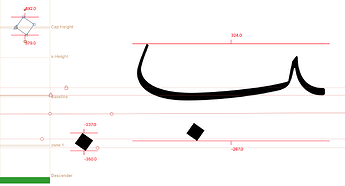

first pic is Beh and dot moved and second is Teh and dot is Ok
you see? just dot position is changed
Do the dot components contain components? Can you show the contents of the dot components?
Are the components scaled/transformed in any way?
Yes . Dot contain component

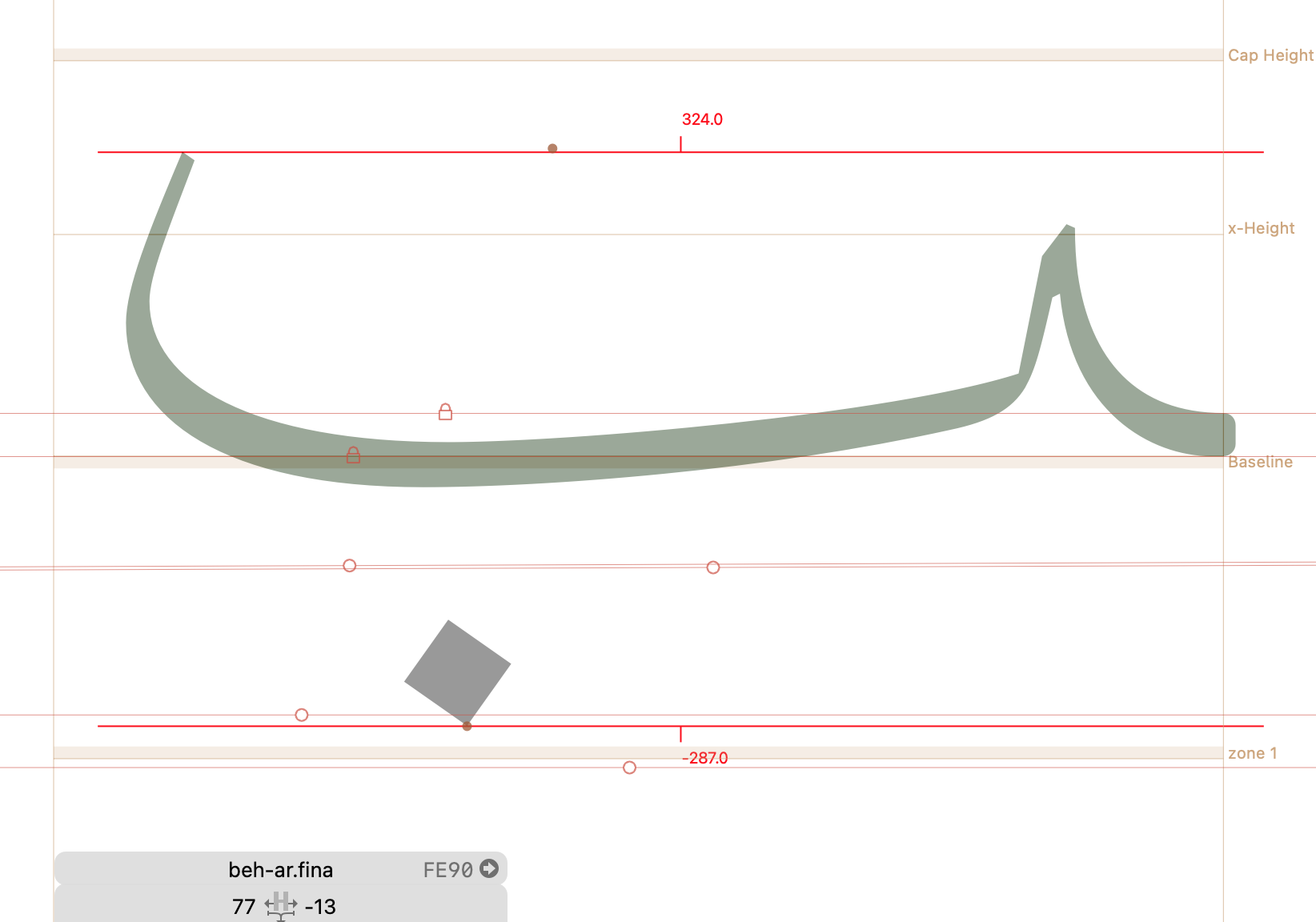

In first pic Beh No but in second pic Teh dot saled
In Teh dot contain 2 component but all same
This is called nested components, as Jens pointed out. “Nested” means that there are components contained inside components (multi-level components, so to speak).
Follow Jens’ instructions and add the Unnest Components filter to your export.
1 Like
For more information about this problem, you can read Printing issues due to running TTF fonts through a PostScript 3 printer · Issue #412 · arrowtype/recursive · GitHub
You can also run your fonts through Fontbakery which will check for nested components and many other potential issues in your fonts.
