Drooping or rising corner component when its reflection is fine

[Itu (Itu Chaudhuri)]

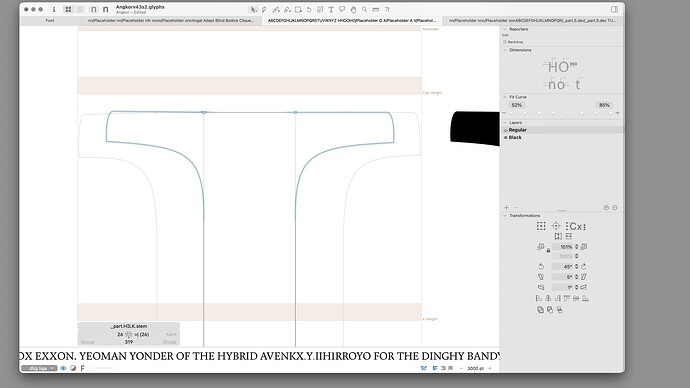

The same corner component, with identical scaling, on two corners of a stem, at the same y height, draws slightly differently. In the screenshot, which shows a stem in the Black master layer, the serif at left droops, while the right serif is correct. The serifs at the bottom of the stem are fine too.

In the next screenshot the same stem is shown, in the Regular Master. Here the left serif rises, the other serifs render correctly.

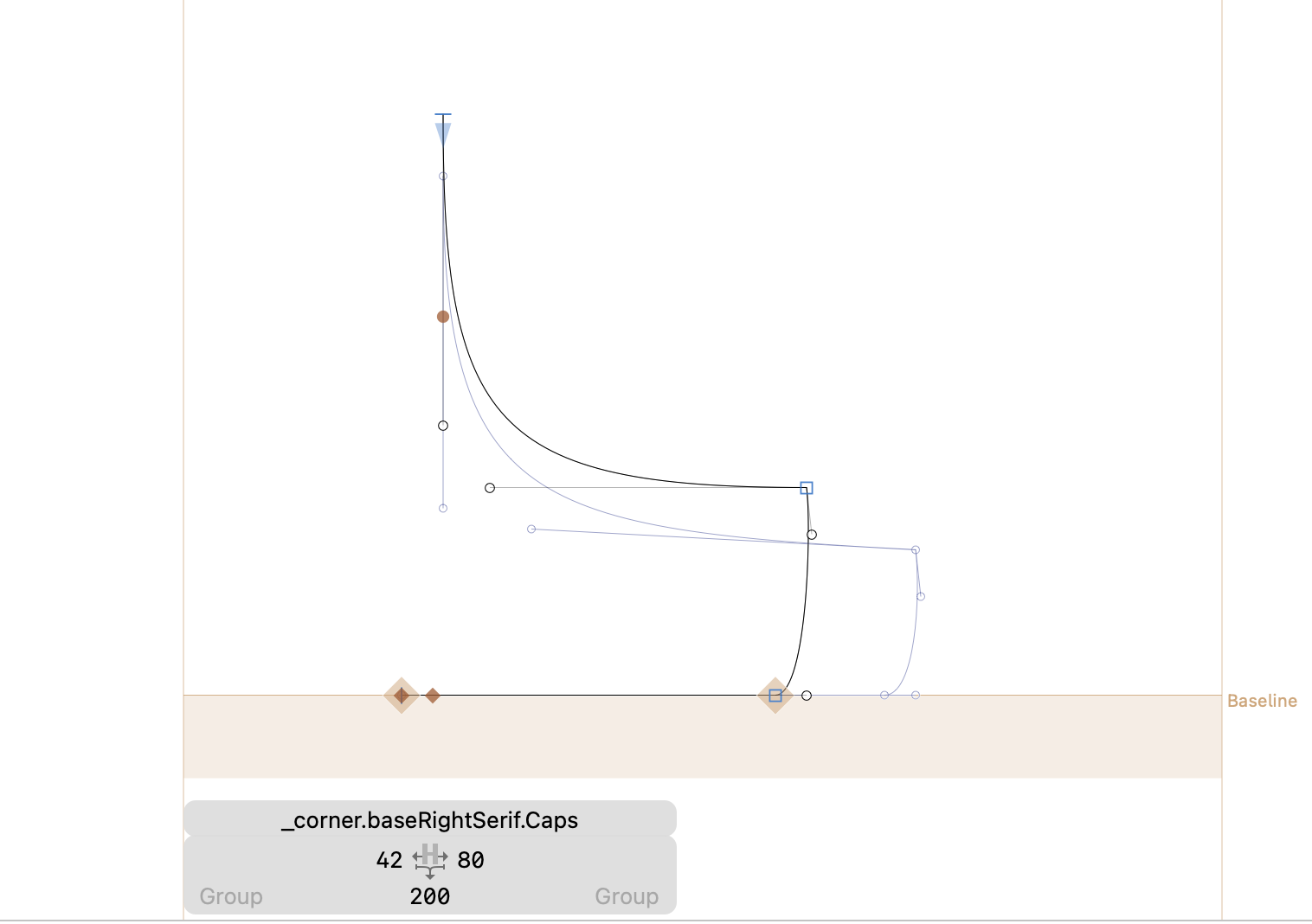

Finally, this screenshot shows the corner component in question

[GeorgSeifert]

Have you checked the align setting?

[Itu (Itu Chaudhuri)]

What is that..? The on path nodes are perfectly aligned etc both on the corner component and on the stem, but that’s prob not what you mean?

If I decompose the serif component, the point is 2 units above where it should

[Itu (Itu Chaudhuri)]

Ok I got what you meant, thanks Georg, all sorted
