topAccent / bottomAccent in Stylistic Sets

Glyphs
1

Hello :^)

I’m currently setting up diacritics in my typeface. I made use of the topAccent / bottomAccent function in Glyphs which worked great! Now I would like to do the same for my stylistic set characters (there are a lot of them). This is where I got stuck. I tried two different naming formats: A.ss01.topAccent and A.topAccent.ss01, but when I try to generate Adieresis.ss01 etc. it still combines the default character with the marks. Is there a flaw in my logic or is the feature exclusive to default characters?

Thank you so much for your help

All the best
Raoul

2

Can you provide a more specific example?

1 Like
3

Thank you Georg! If it was jut this character, I would do it manually. but unfortunately almost every character that has marks needs a top/bottomAccent version.
I did screenshots of all my steps to visualize my situation. Hope that helps

topbottom-01
topbottom-014012×2262 593 KB

btw the “a” being named “A” is intentional. it’s a bit of a conceptual typeface :wink:

4

what is the difference between “A” and “A.topAccent”, and “A.ss02” and “A.ss02.topAccent”?

5

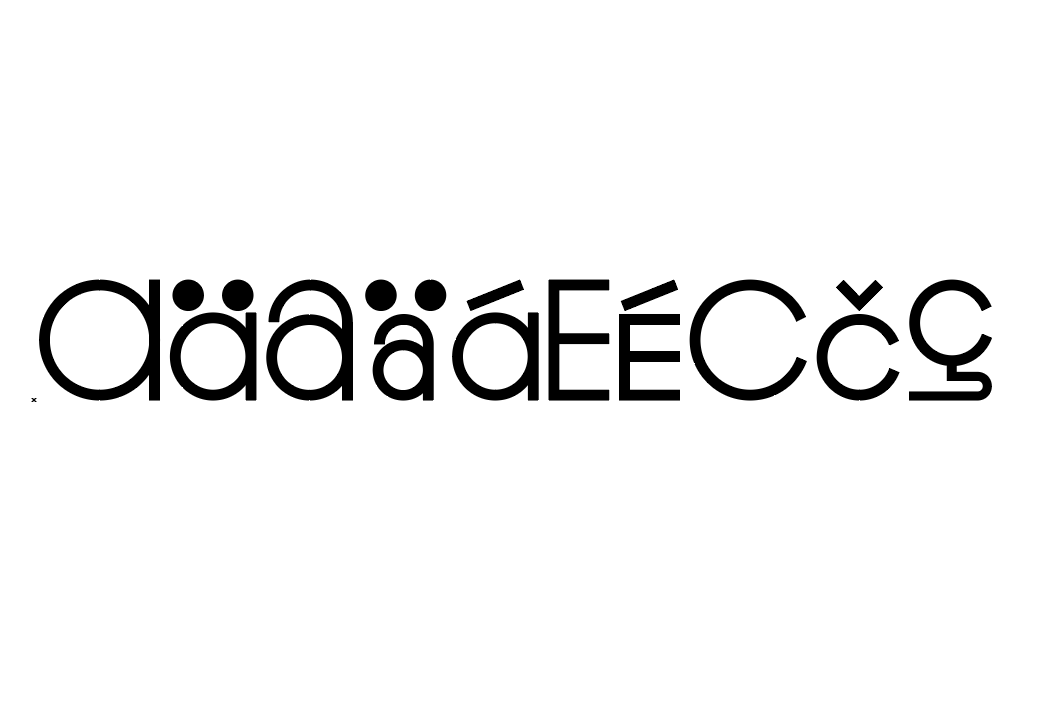

The difference is the size. A significant characteristic of the typeface is, that nothing goes below the baseline or above the cap-height. Instead the characters have a smaller version (while stroke width remains the same). The bottomAccent characters are moved 200 units from the baseline to fit the mark underneath

56
561058×718 13.4 KB

6

You can force the building of the diacritics with a recipe. Or use the mekkablue script Find and Replace Components post facto.

1 Like
7

Amazing, thank you. I’ll give that a try
