Variable Font with Round Corners component issue

Glyphs
1

Hi all,
i’m trying to desigin a variable font with rounded corner.

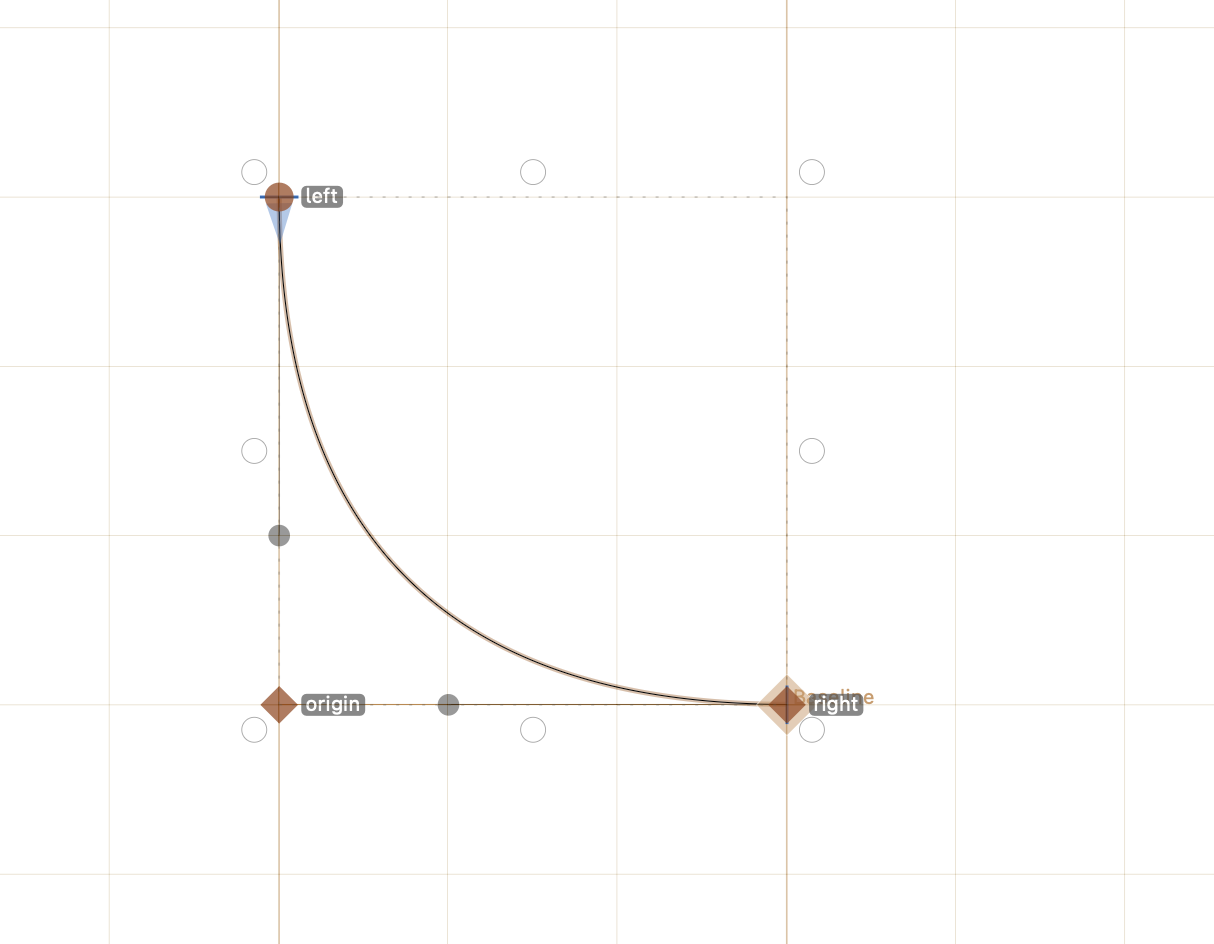

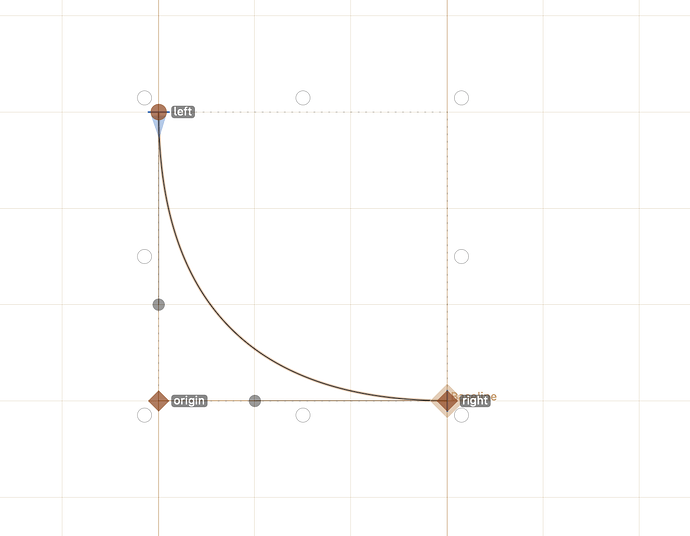

I create a corner component for each master as shown in the picture, then applied to the 90° corners with center alignment.

image1214×944 36.1 KB

This seems not to work with acute or obtuse angles like “A” or “V”. i tried to adjust the parameters and alignment but i still got spikes or angles at smaller weights/widths. (somtimes even for the 90° corners.

As a last resort i also tried to apply manually round corner to each glyph in each master but i still have some strange output when moving axsis at small weight.

Any Suggestion?

2

Can you show how you use the corner?

3

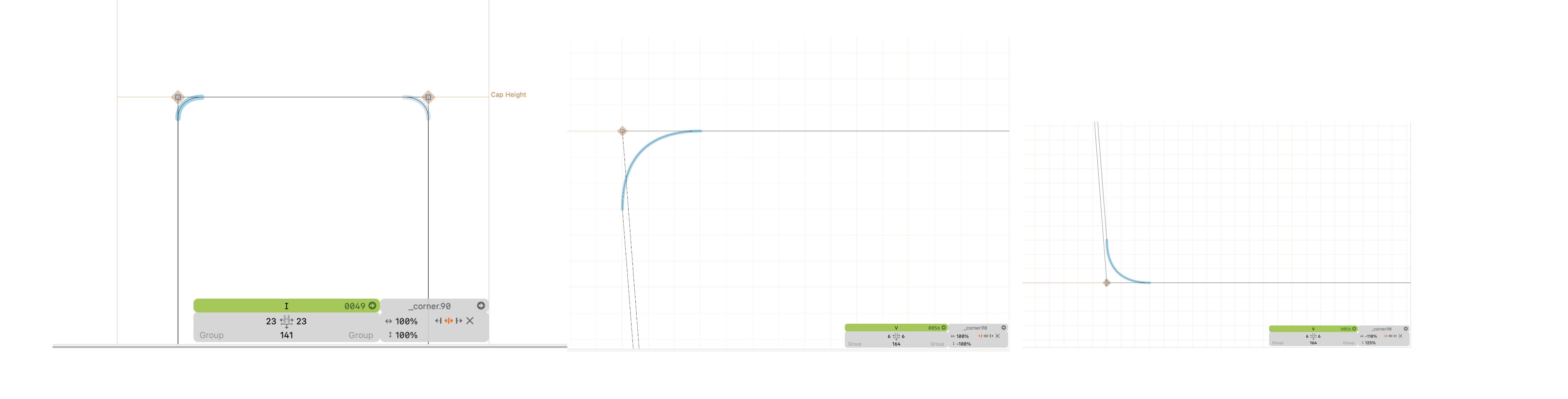

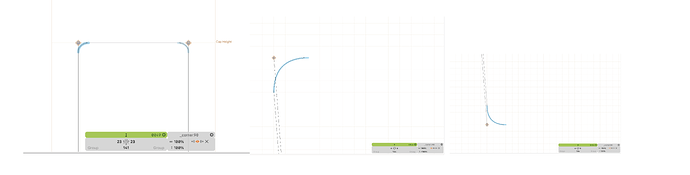

here you have applied to I (left) and two different corners of V ( center/right)

image4884×1244 247 KB

Using mekkablue script i I applied same aligment to all masters.
